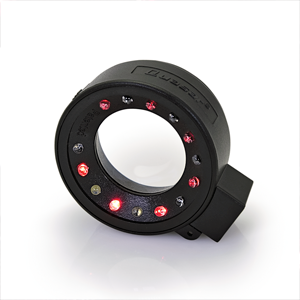

Quasar® R Sensor Loupe® Magnifier with Dark Adaptation Technology


What’s Inside

  • Quasar® R 5x Sensor Loupe® with Dark Adaptation Technology (1)
  • CR2032 lithium batteries (2)

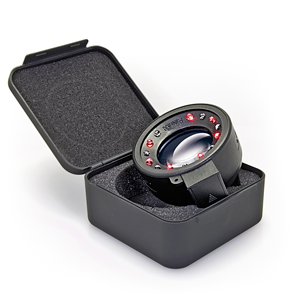

  • Foam coated hard case (1)

For FREE AMAZON SHIPPING to Canada or USA click on the links below:

Free shipping from Amazon

For USA customers

For Canadian customers


Can$132.00 Can$125.40

US$101.16 * | 85.80*    *approximate price
Offer expires October 1st, 2017


  • PRODUCT HIGHLIGHTS

    • Dark Adaptation Technology (DAT)

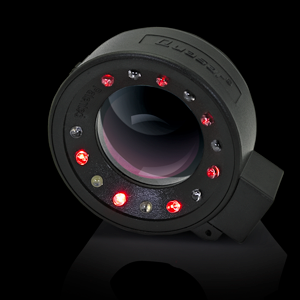

    • Seven (7) white and seven 7 red super bright LEDs
    • 67 mm ring for attachment of filters and extension tubes
    • Fluorine coated (MgF2) ED Glass to enhance resolution and reduce chromatic aberration
    • Bright Vue technology to create a 3D representation
    As a company based on utilization of scientific knowledge, VisibleDust is proud to introduce an original and innovative device called the Quasar® R 5x Sensor Loupe® Magnifier with Dark Adaptation Technology.

    This new device uses Dark Adaptation Technology (DAT) to enhance visual acuity to find dust and stains which are otherwise not visible in the presence of white light. Quasar® R comes with fourteen (14) bright LEDs, seven (7) of which are a unique red LEDs with specially chosen wavelengths to increase visibility of dust particles. At this specific wavelength, the red LEDs cause the iris to dilate the pupil as wide as possible, allowing more light into the eye so that sensitivity in photoreceptors is enhanced several fold. After only a few seconds of the pupil widening, you will be able to see the sensor more clearly, and in greater detail.

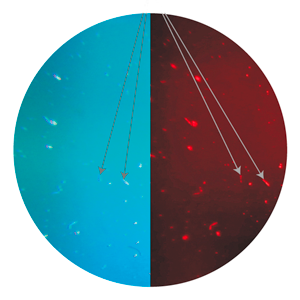

    Dark Adaptation Technology description

    Dark Adaptation Technology allows more light to enter to the pupil of the eye enhancing the ability to see the sensor more clearly.

    The Quasar® R 5x Sensor Loupe® Magnifier comes with a 5x magnification ED (extra low dispersion) glass and Fluorine coating (MgF2) to enhance resolution and reduce chromatic aberration.

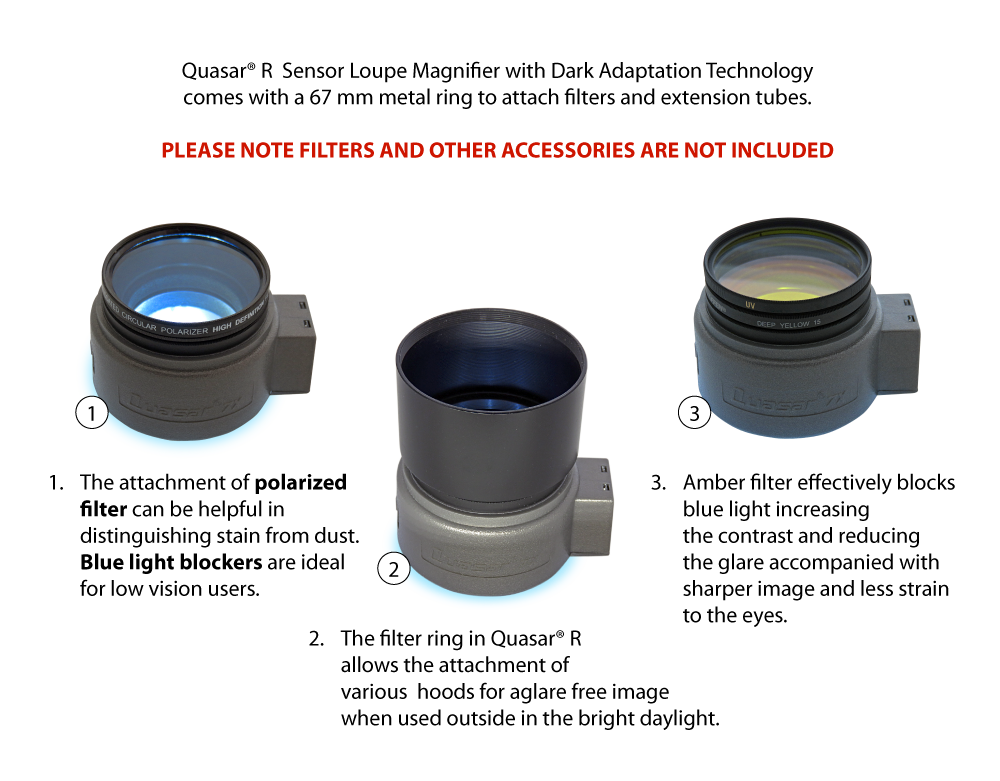

    Another feature of the Quasar® R 5x Sensor Loupe® Magnifier is a 67 mm metal ring allowing filters and extension tubes for alternative photography to be attached.

    Note

    FILERS AND OTHER ACCESSORIES
    ARE NOT INCLUDED

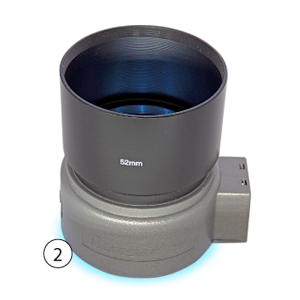

    Filters and tubes usage with Quasar R

    The Bright Vue technology used in Quasar® R Sensor Loupe® Magnifier uses seven white or red super bright LEDs with vari-angled orientation specifically designed to create a 3D representation and identify even the smallest spots with heightened eye resolution.

  • Device dimensions: 3.7 x 3.0 x 1.56″ (93 x 78 x 40 mm)

    Weight:  0.207 lb (0,094 kg)

    Hard case dimensions: 4.0 x 4.0 x 2.0″ (105 x 105 x 54 mm)

    Device weight with hard case: 0.403 lb (0,183 kg)

  •

    1. Package includes two CR2032 lithium batteries separate from the Quasar® R
    2. Insert both the batteries with PLUS signs facing upwards
    3. Dim or turn off any light sources in the room
    4. Allow a minimum of one minute in total darkness for dark adaptation to take place
    5. Turn on the red LED Quasar® R light only, scan chosen surface
    6. For additional inspection use white LED
